KWIK-TRENCH MINI-TRENCHER
The Fastest Mini-Trencher on the Market
Are you looking for the best mini-trencher? The Kwik-Trench mini-trencher meets the shallow trenching needs of rental stores, contractors and golf course superintendents. Thanks to its simple, push-forward design, the Kwik-Trench Earth Saw has proven itself as the fastest, easiest to use, and most economical mini-trencher on the market today. The Kwik-Trench’s compact size lets you get into areas inaccessible to full-size trenchers. And once at the jobsite, you’ll achieve cutting speeds of up to 30′ per minute. A manual crank on belt-driven models infinitely controls your cutting depth (up to 12″ on model KT 2400) while a locking swivel wheel lets you cut straight trenches.
Features & Benefits
- Trenches up to 30′ per minute
- Cuts neat, clean trenches up to 12″ deep
- Choice of 2 models
Applications
- Residential lawn sprinkler systems
- Electronic dog fencing
- Low voltage wiring (TV, cable, satellite dish)
- Plumbing and drainage lines
- Landscape edging
- Silt fencing
- Root pruning
- Wire cable installation
Downloads

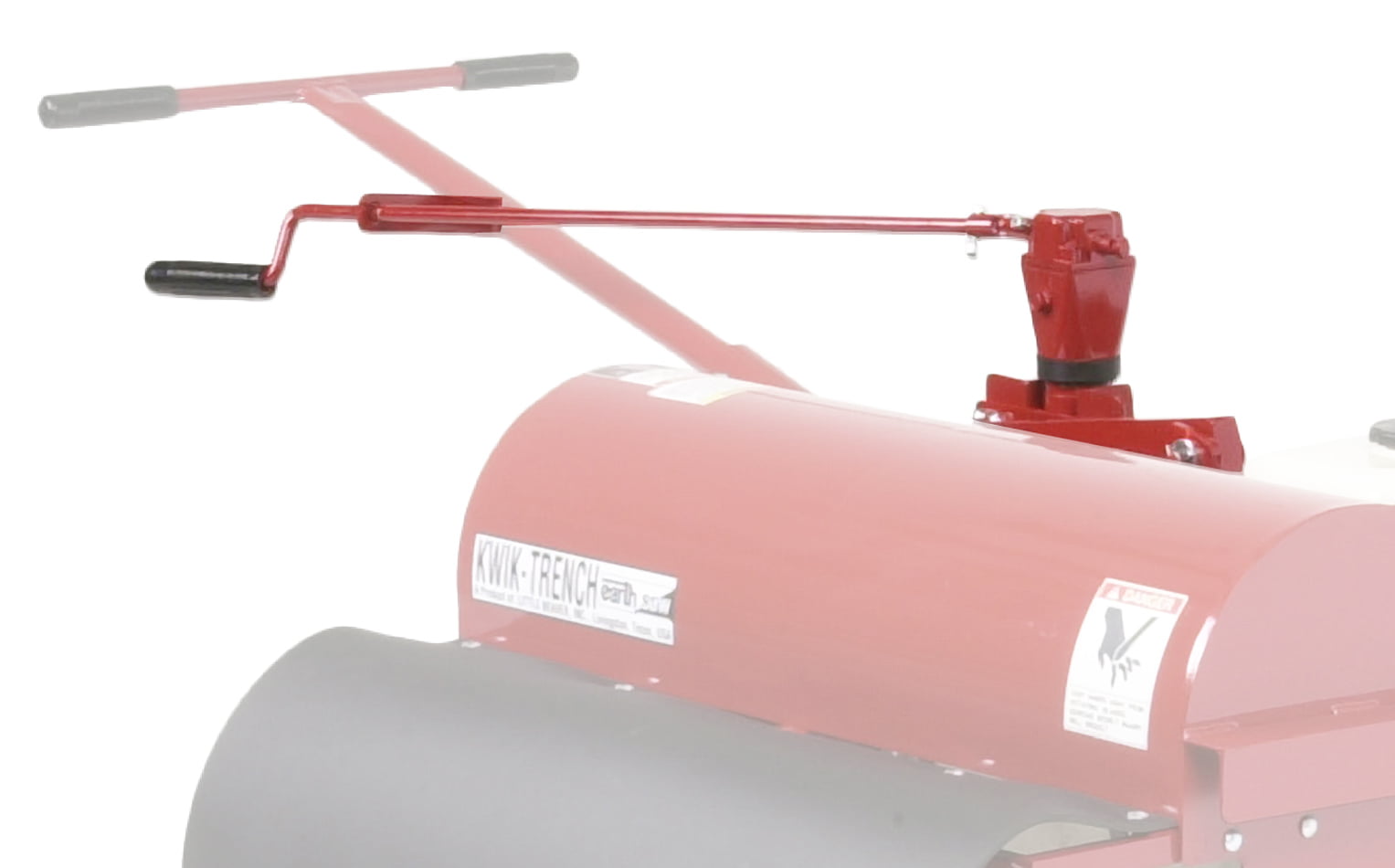

Change blades to cut trenches from 1 to 4 inches wide, and use the manual crank to control depths to a maximum of 8 to12 inches.
Prevent injury with the protective shroud that houses rotating components and a side shield that keeps flying debris contained.

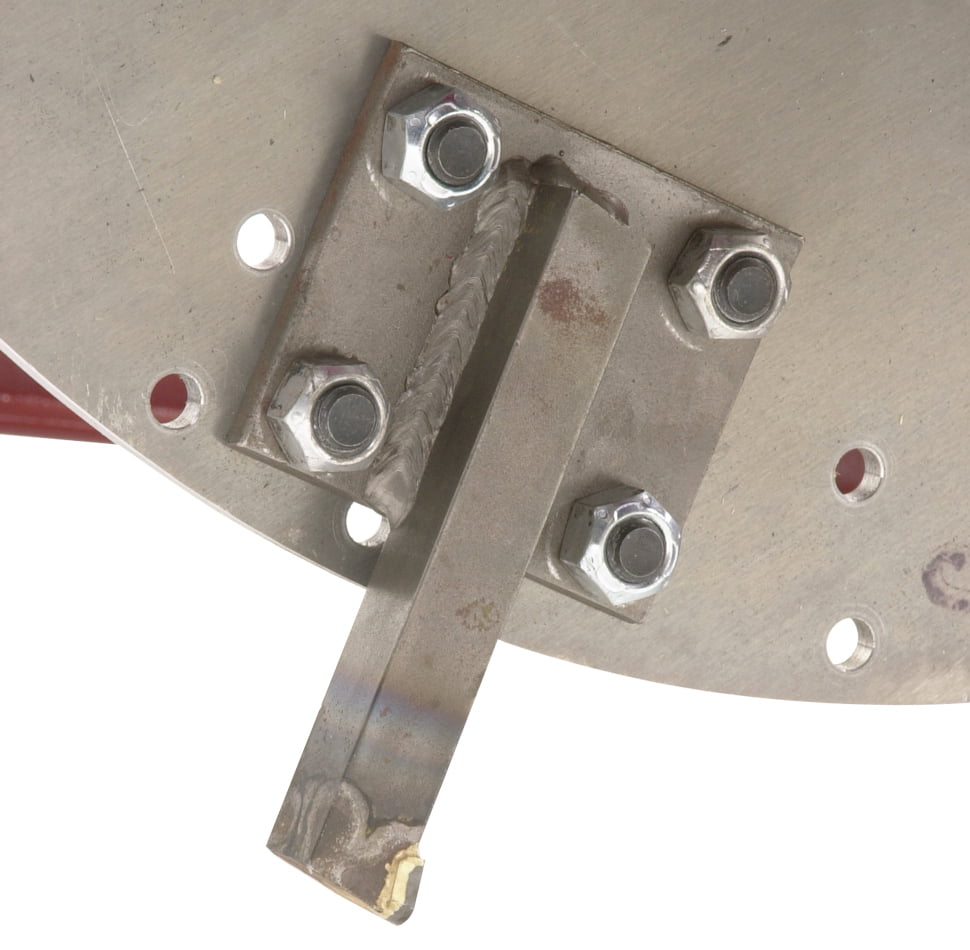

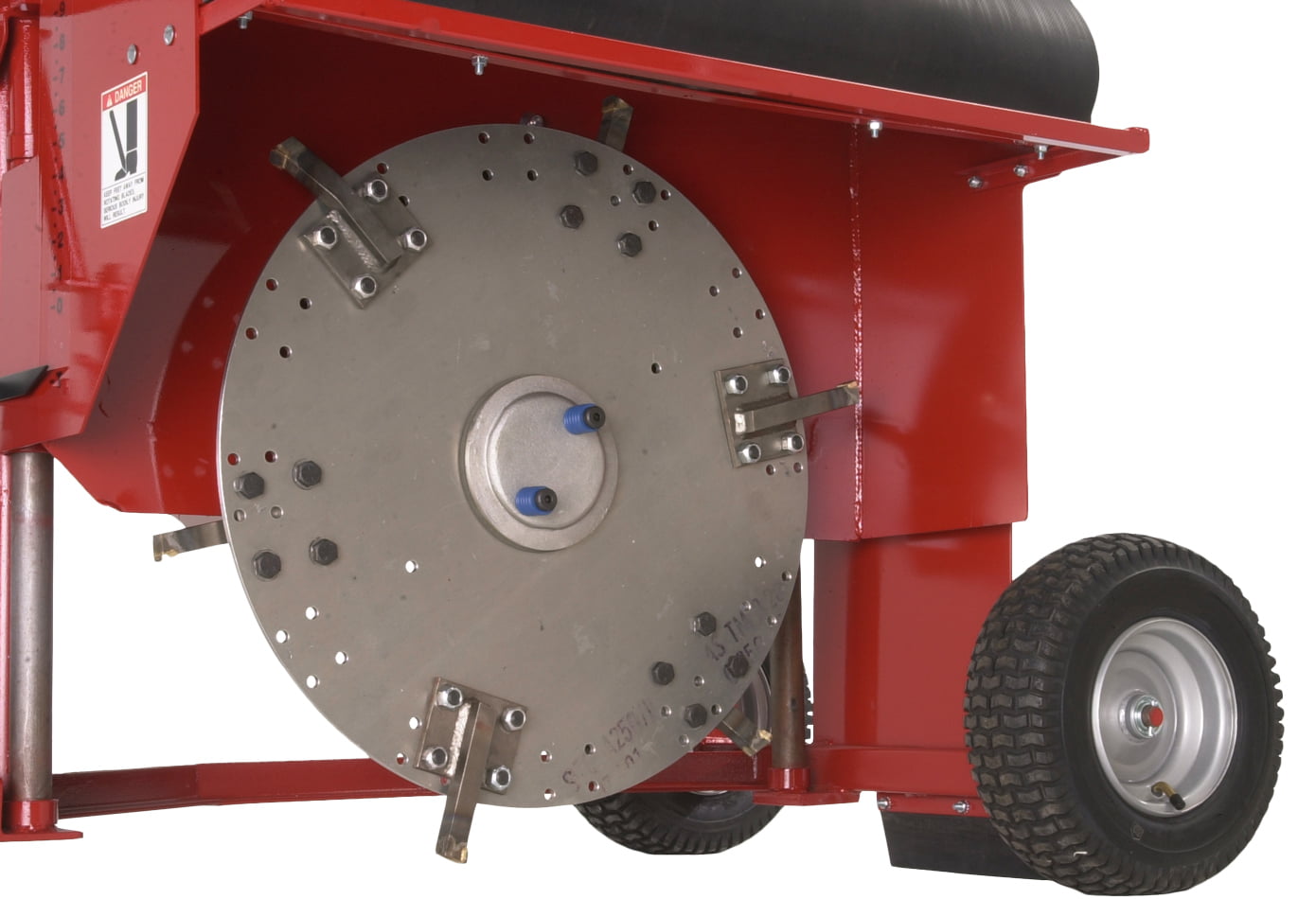

Driven by triple v-belts, the cutter wheel rotates up to 800 rpm for fast, clean cutting. A slip clutch is built into the hub of the cutter wheel, protecting the engine and drive train from wear or damage. Trench width sizes from 1″– 4″, depending upon model, are obtained through various combinations of teeth styles and teeth mounting locations.
Intelligently designed to promote easy backfill, with soil neatly deposited on one side of the trench.

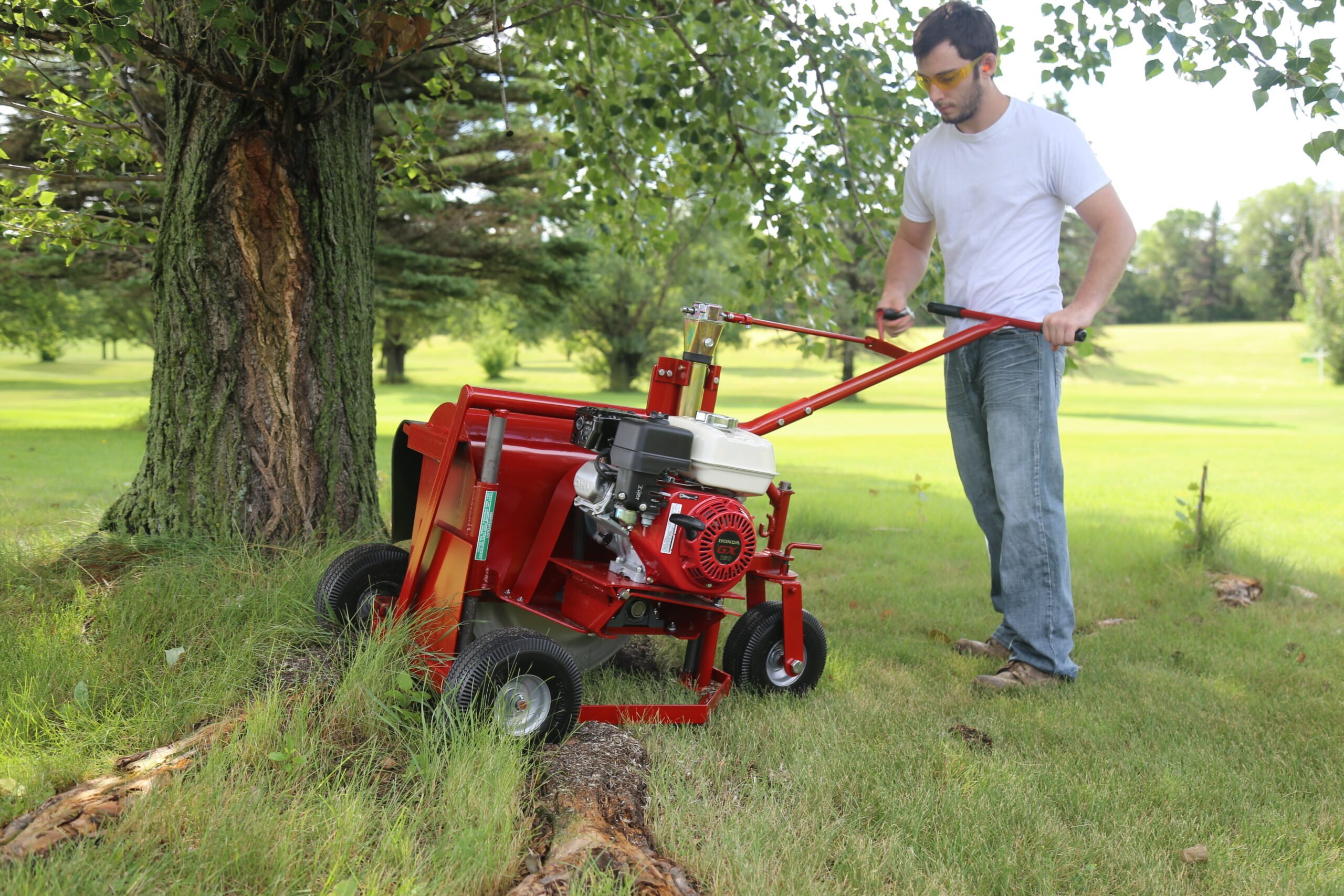

Little Beaver Kwik-Trench Mini-Trencher is easy-to-operate and can efficiently cut and prune roots.

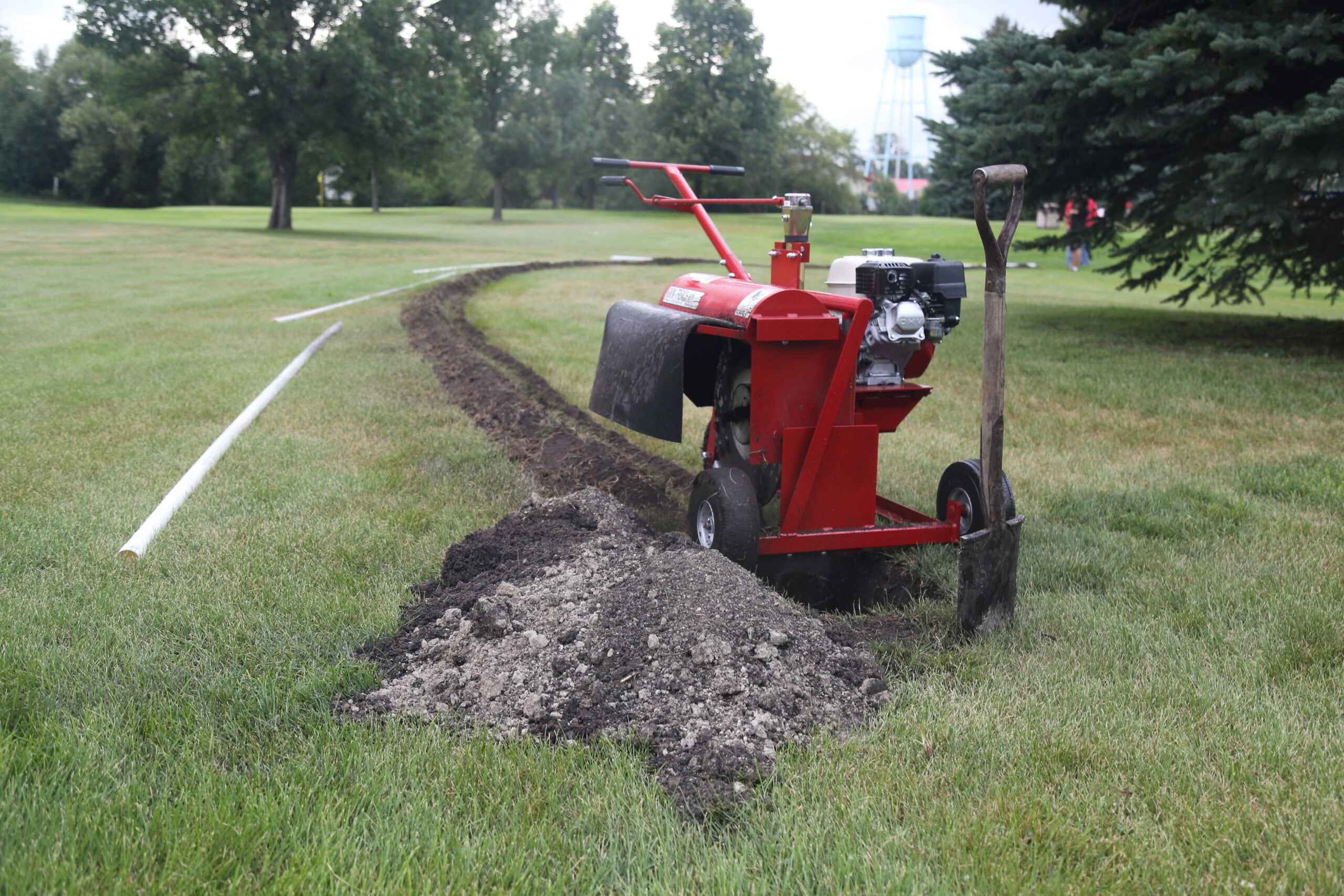

The Kwik-Trench is designed to minimize backfill and cleanup time by depositing soil beside the trench.
All Kwik-Trench earth saws feature pneumatic tires, so you won’t spend extra time repairing damaged turf caused by tracked machines or skid-steer loaders.
Optional Tilt Bed Utility Trailer
For the ultimate in convenience, transport your trench saw on the model KT 2000 tilt bed utility trailer. This handy trailer securely carries all Kwik-Trench models and makes it simple to quickly move the Kwik-Trench from job to job.
- Spring axles
- 10 gauge diamond plate bed
- 1,000 lb. load capacity
- Axle lock and tie-downs
- Fits 2″ towing ball
Specifications
Engine Brand/Model
Engine Horsepower
Oil Alert System
Starting
Blade Drive
Digging Width
Max Digging Depth
Depth Gauge
Number of Cutting Teeth
Type of Cutting Teeth
Dimensions LxWxH
Dry Shipping Weight
KT200B
Honda GX160 OHV
5.5 hp (4.8 hpnet)
Standard
Recoil
Triple V-belt
1-3 in
8 in
Standard
KTSXRT – 4 / KTSBP – 8
Carbide Tipped
57.25 x 31 x 40 in
280 lbs
KT2400B
Honda GX240 OHV
8.0 hp (7.9 hp net)
Standard
Recoil
Triple V-belt with Automatic Tensioner
1-4 in
12 in
Standard
KTSXRT – 8 / KTSBP – 16
Carbide Tipped
72 x 36 x 40 in
430 lbs
